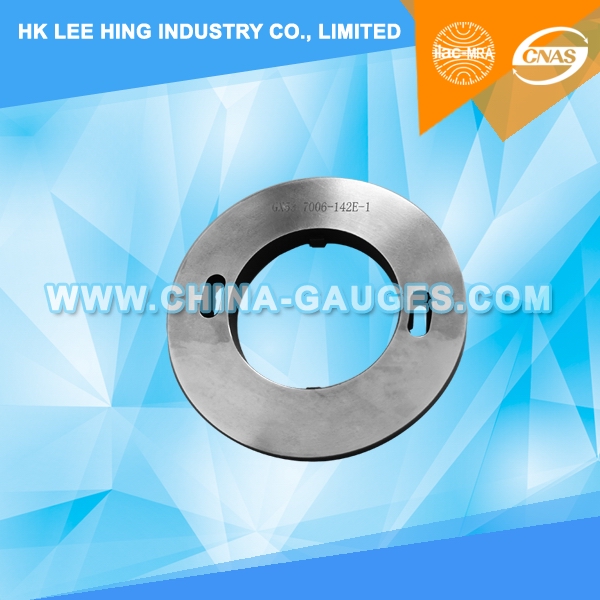

7006-142E-1 GX53 Go and No Go Gauge for Checking Keyways in Caps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-142E-1

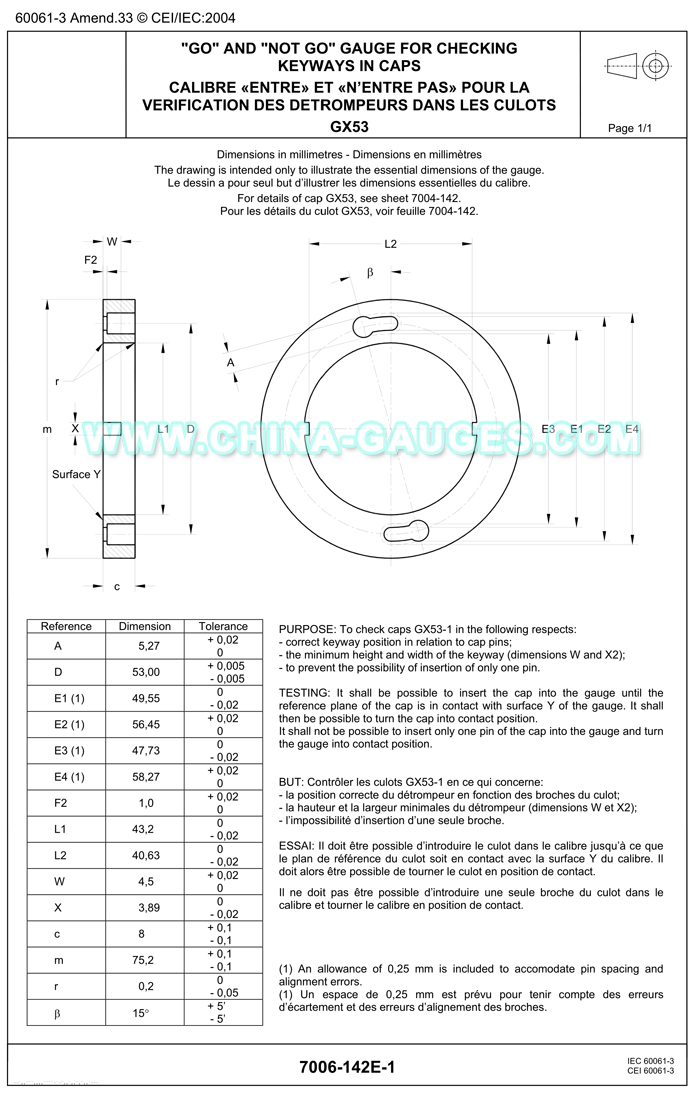

7006-142E-1 GX53 Go and No Go Gauge for Checking Keyways in Caps

PURPOSE:
To check caps GX53-1 in the following respects:
- correct keyway position in relation to cap pins;
- the minimum height and width of the keyway (dimensions W and X2);
- to prevent the possibility of insertion of only one pin.

TESTING:
It shall be possible to insert the cap into the gauge until the reference plane of the cap is in contact with surface Y of the gauge. It shall then be possible to turn the cap into contact position.

It shall not be possible to insert only one pin of the cap into the gauge and turn the gauge into contact position.

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
