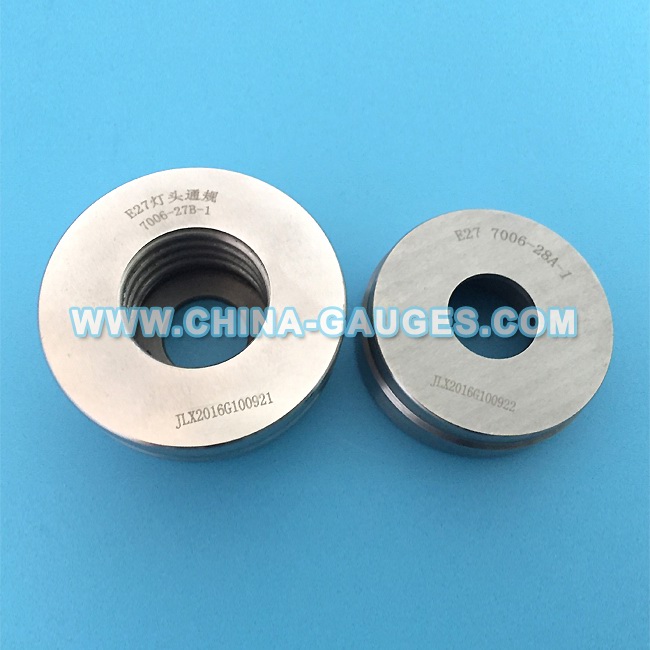

E27 Go/Not Go Gauge of Finished Lamp Cap Include:
1) IEC60061-3 7006-27B-1 Go Gauges for E27 Caps on Finished Lamps;
PURPOSE:
To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps shown on sheet 7004-21.
TESTING:
When the cap on a finished lamp has been screwed into the gauges as far as it will go, the centre contact shall be coplanar with, or project beyond surface X.
2) IEC60061-3 7006-28A-1 Not Go Gauges for E27 Caps on Finished Lamps;
Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension "d" of E27 caps on finished lamps shown on sheet 7006-21.
Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface "X". Only the weight of the gauge itself shall be used in the test.
